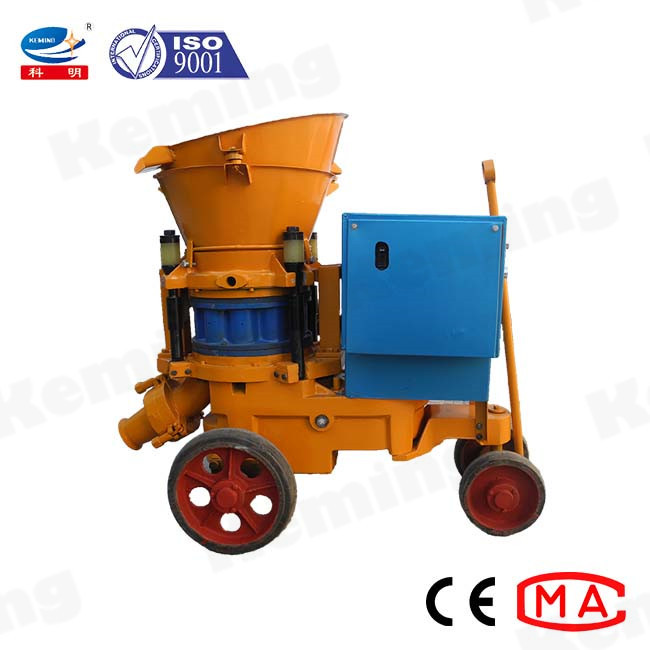

Electric Motor Mine Dry Gunite Shotcrete Machine 9m3/H 0.6Mpa

Name: Electric Motor Mine Dry Gunite Shotcrete Machine 9m3H 06Mpa
Brand: KEMING
Price: 1 USD

Brand Name : KEMING

Model Number : KPZ-3

Certification : CE,MA

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100 Set/Per Month

Delivery Time : 10~20 Work Day

Packaging Details : Export Wooden Case

Product name : KPZ-3/4/5/7/9 dry gunite machine

Pressure : 0.6Mpa

Max aggregate : 20mm

Main power : 7.5kW

Horz. distance : 100m

Vert. distance : 40m

Capacity : 7~9m3/h

Theory : Rotory shotcrete machine

Output : 3/4/5.5/6.5/8.5m3/h

COLOR : Customer's Requirement

Contact Now

Customized KPZ dry gunite shotcrete machine using electric motor for mine

Electric Dry Shotcrete Machine Introduction:

1. Electric dry shotcrete machine is designed for spraying dry, damp and wet mixture.

2. Electric dry Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, electric control box.

3. It has advanced technology, rational structure, convenient operation, stable performance and long service life.

Electric Dry Shotcrete Machine Application:

1. Electric dry shotcrete machine can be used for dry or half wet concrete spray construction.

2. It is widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.

Electric Dry Shotcrete Machin Parameters:

KPZ Series (Electric motor)
Model	KPZ-3	KPZ-4	KPZ-5/PC5I	KPZ-7	KPZ-9
Output	2-3m3/h	3.5-4.5m3/h	4.5-5.5m3/h	6-7m3/h	7.5-8.5m3/h
Max. conveying dist.	250m	230m	200m	150m	100m
Max. aggregate size	15m	18m	20m	20m	20m
Hose inner diameter	φ42/51mm	φ42/51mm	φ51mm	φ57mm	φ57/64mm
Air consumption	5-6m3/min	6-7m3/min	7-8m3/min	8-9m3/min	9-10m3/min
Motor power	3kw	5.5kw	5.5kw	7.5kw	7.5kw
